What do uplighting and downlighting wall fittings actually do?
Uplighting throws light toward the ceiling to expand perceived height; downlighting throws it toward the floor for defined, directional illumination.
The beam direction of a wall fitting determines its functional and atmospheric role in a room. An uplighter mounts with its aperture facing upward, bouncing light off the ceiling plane. This reflected light is soft and diffuse — it raises the apparent height of a room and reduces harsh shadows. A downlighter mounts with its aperture facing downward, casting a controlled cone or wash toward the floor or a surface below the fitting.
These are not interchangeable. Choosing the wrong direction produces either a flat, undifferentiated ceiling glow where you needed task light, or a harsh pool on the floor where you needed ambience.
Many designers specify both types in the same room to layer light: uplighters on the upper portion of a wall for ambient fill, downlighters lower down for accent or task. This is standard practice in hospitality and residential specification alike.
Among wall lights, you will also find dual-emission fittings — sometimes called up-and-down lights — which emit from both ends of a cylindrical or rectangular backplate. These suit corridor and hallway applications where both ceiling wash and floor definition are needed simultaneously, without doubling the number of fittings.
Which beam direction is better for creating atmosphere in a living room?
Uplighting is the stronger choice for atmosphere in a living room — it softens shadows, warms the ceiling, and avoids the clinical feel of direct downlight.
In a living room, the primary lighting goal is comfort. Uplighting achieves this by removing the ceiling as a dark, oppressive plane and replacing it with a warm, luminous surface. At 2700K–3000K colour temperature, an uplighter on a cream or white ceiling produces a glow that reads as candlelit rather than institutional.
Downlighting on a wall fitting, by contrast, draws the eye downward. It is effective for highlighting a fireplace surround, a console table, or a piece of art — but used alone it creates pools of light separated by dark voids, which reads as dramatic rather than relaxed.
For a living room, the practical specification is:
- Uplighters at 1,800–2,000mm from finished floor level, spaced 1,200–1,500mm apart on longer walls
- Colour temperature 2700K for maximum warmth
- Dimmer-compatible drivers or lamp types — most LED uplighters accept trailing-edge dimmers
- A minimum of 300 lumens per fitting for rooms above 20 square metres
If the ceiling is textured, uplighting will accentuate that texture. On a smooth plastered ceiling this is desirable; on a heavily textured Artex ceiling it can look unflattering. Assess the ceiling finish before specifying.
When should you choose downlighting wall fittings over uplighting?
Choose downlighting wall fittings when you need directional light on a surface, object, or path — not when the goal is ambient room fill or ceiling wash.
Downlighting wall fittings are the correct choice in four main scenarios: staircase lighting, bedside reading, artwork accent, and exterior path illumination.
On a staircase, a downlighter positioned 1,000–1,200mm from finished floor level casts light directly onto the treads, improving safety without spilling glare into the eye line of someone descending. This is a functional requirement, not a stylistic preference — poor staircase lighting is a hazard. The HSE guidance on electrical precautions is relevant context when planning any fixed installation near high-traffic areas.

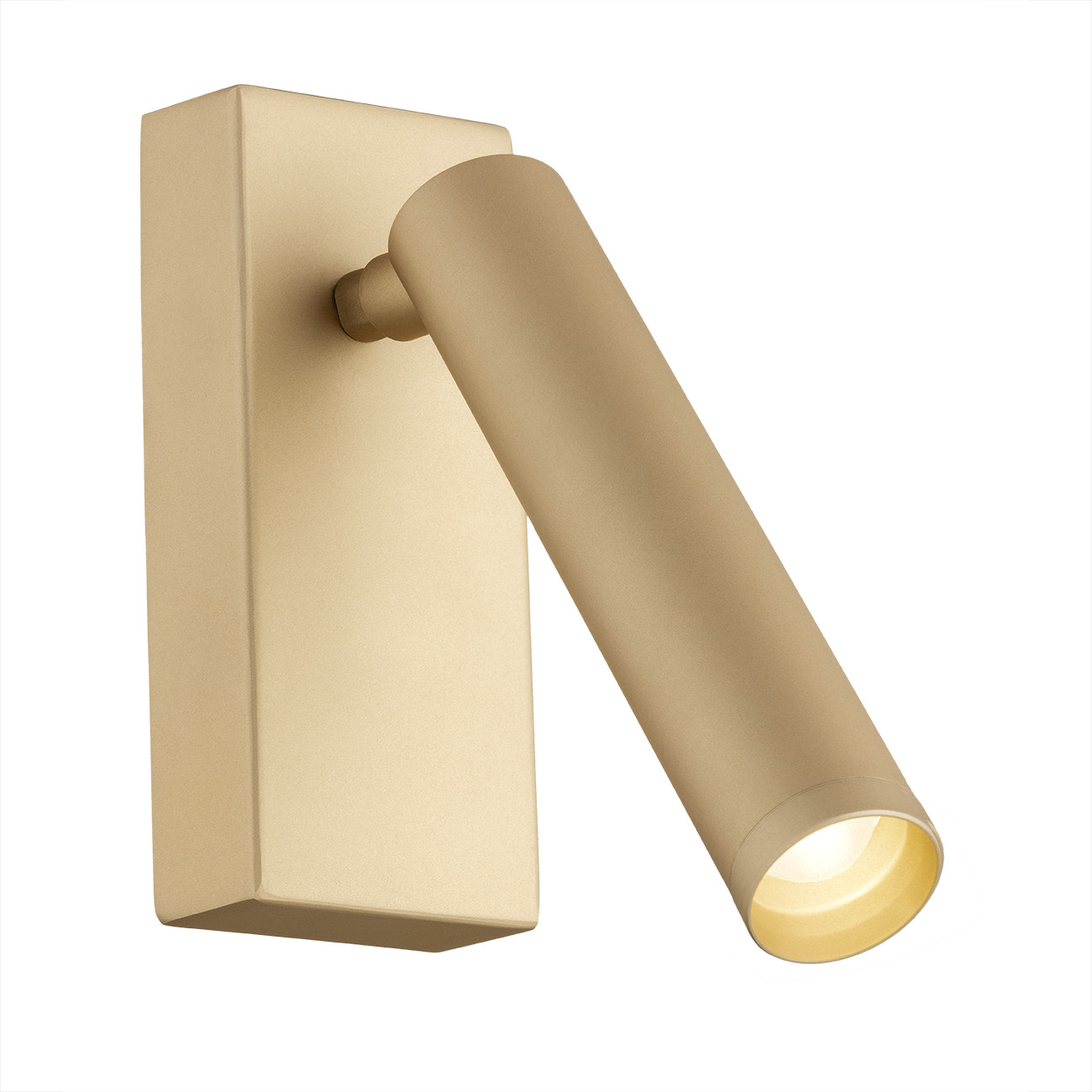

For bedside reading, a downlighter or directional spot mounted at 1,400–1,600mm provides focused illumination on the bed surface without lighting the whole room. This is why adjustable-head wall spotlights — such as a single wall spotlight with a pivoting GU10 head — are standard in hotel bedroom specification.
For artwork, a downlighter positioned 300–400mm out from the wall and angled at 30 degrees produces even coverage across a canvas without hotspots. Use a narrow-beam lamp (15–25 degrees) for smaller pieces, a wider beam (40 degrees) for large-format work.
Exterior downlighters on a house facade illuminate pathways and entrances while keeping glare below eye level — an important consideration for neighbours and passing pedestrians.
Do uplighting and downlighting wall fittings have different IP rating requirements?
IP rating requirements depend on location, not beam direction — both uplighters and downlighters in bathrooms need IP44 minimum in zone 2 areas.
The IP rating of a wall fitting is determined by where it is installed, not which way it points. BS 7671 and the IET Wiring Regulations define bathroom zones that apply equally to uplighters and downlighters.
Zone 1 (directly above the bath or shower to 2,250mm) requires IP45 minimum. Zone 2 (600mm horizontal radius from zone 1, up to 2,250mm) requires IP44 minimum. Outside the bathroom zones, standard IP20 fittings are acceptable in dry interior locations.
For exterior wall fittings — whether uplighting a rendered facade or downlighting a front door — IP44 is the practical minimum; IP65 is preferable in exposed locations subject to driving rain.
One practical consequence of beam direction: an upward-facing aperture in a wet location accumulates water more readily than a downward-facing one. Specify IP65 for exterior uplighters regardless of how sheltered the soffit appears. A downward-facing exterior fitting in a sheltered porch can operate at IP44, but IP54 is a safer specification.
If you are uncertain about zone classification or the correct rating for a specific installation, consult a registered electrician. The NAPIT consumer advice service provides guidance on finding a competent person for Part P notifiable work in England and Wales.
Never substitute an indoor-rated fitting in a bathroom or exterior location on the basis that it is only briefly exposed to moisture.
